A Rubber Bellow or Rubber Expansion Bellow is a flexible connector that looks like a corrugated or accordion-shaped tube. It’s typically black but it can come in other colors depending on the material and design. These Bellows are designed to connect pipelines, offering flexibility while absorbing vibrations, movements and any misalignment between pipe sections. Fitting a Rubber Bellow into a pipeline is simple, as it is clamped or bolted between two pipes. It provides a snug fit, allowing the pipeline to expand, contract, or shift without compromising structural integrity.
Rubber Bellows are essential in piping systems for several reasons. Their primary advantage is the ability to absorb thermal expansion, reducing stress on the pipeline. They also prevent damage from mechanical vibrations which is especially important in industrial settings where equipment and pipes are subject to regular movement. By offering flexibility, Rubber Bellows prolong the life of the piping system, prevent leaks and enhance operational efficiency.
Rubber Bellows are used across many industries, including water treatment, HVAC, Chemical, Oil and Gas, Power plants etc. They are typically made from various types of rubbers including Natural Rubber, EPDM, Nitrile, Neoprene etc., selected based on their specific application, environment and compatibility with transported materials.
An ARC (Abrasion Resistant Compound) Bellow, for instance, is designed to endure harsh environments with high levels of wear and tear, making it ideal for applications in heavy industry. In terms of functionality, Rubber Bellows act as shock absorbers, handling angular, lateral and axial movements. By allowing controlled movement, they reduce the strain on pipelines, maintain a smooth flow and protect the system from damages due to pressure surges or thermal expansion.
We are leading Rubber Bellow manufacturers in India upto the following capacity :
Expansion Bellows I.D. : Upto 2000 mm.
Working Temperature : Upto 150 Degree C
Working Pressure : Upto 45 Kg. / cm²
Neoprene, EPDM, Natural, Silicon, Hypalon, Nitrile, Buna-N etc.
Mild Steel, Stainless Steel, ASTM A105, SA516 Gr.70 & other Carbon Steel Grades.
Counter Flanges / Matching Flanges / Companion Flanges, Split Retaining Rings, Control Units (Tie Rod, Nut & Lock Nut, Stretcher Plate), Revolving Flange / Loose Flange, Gaskets, Fasteners etc.
Rubber Bellows with flanges are crucial in many piping systems due to their flexibility, vibration absorption and ability to withstand various pressures and temperatures. Here’s why they are typically designed with flanges on both sides and the key details about flange materials and configurations :
# Sealing and Stability : Flanges on both ends of a Rubber Bellow ensure a secure and stable connection within the piping system, providing an effective seal that minimizes leaks and pressure drops.
# Ease of installation and maintenance : Flanges make it simpler to install, remove, or replace the Bellow without requiring specialized tools, reducing downtime in maintenance and ensuring system efficiency.
# Enhanced flexibility and vibration isolation : Rubber Bellows help absorb vibrations, expansion and contraction due to temperature changes. Flanged connections support this flexibility, allowing the Bellow to adjust with the system dynamics.
# Adaptability to varied application : Flanged Rubber Bellows accommodate different pressure ranges, fluid types and environmental conditions, making them versatile for various industrial applications.
The choice of flange material depends on the application requirements and user preferences :
# Stainless Steel (SS) : Ideal for corrosive environments and high-temperature applications due to its resistance to rust and durability.
# Mild Steel (MS) : Often used for applications where cost-effectiveness is crucial, although it is less resistant to corrosion than stainless steel.
# Rubber coated Flange : Sometimes preferred for applications where additional flexibility and corrosion resistance are needed, particularly in low-pressure environments.
The number of holes on a flange is designed to match the needs of the piping system and is determined by several factors :
# Pipeline diameter : Larger diameters require more bolts to ensure stability and a proper seal.
# Pipe thickness : Thicker pipes may need additional bolts for an evenly distributed clamping force.
# Bellow weight : Heavier Bellows need more bolts to support the additional load.
# Bellow size : Larger Bellows generally require flanges with a higher number of holes to maintain the necessary pressure and stability.
Here’s a detailed outline of the Rubber Bellow manufacturing process based on the provided steps :
Identify the specific rubber compound needed based on temperature and pressure requirements. Select materials like EPDM, Nitrile, Neoprene or Silicone, each suited for different temperature resistance levels, chemical compatibility and flexibility.
Calculate the required thickness of the ARC layer based on anticipated stress factors like temperature and pressure. Ensure sufficient reinforcement for durability while maintaining the flexibility needed for the Bellow’s performance.
Determine the Bellow’s internal diameter based on the pipeline’s diameter or component it will connect with. Accurate measurement is essential for proper fit, ensuring an airtight and watertight seal in high-pressure environments.
Define flange dimensions, materials and hole placement based on where the Bellow will be installed. Select flange material (Stainless Steel / Mild Steel / Rubber) that meets the environmental and operational demands. Ensure flange holes are drilled to match the bolt pattern of the pipeline or fitting to ensure secure attachment.
Mold the rubber to the determined specifications, including the desired shape, wall thickness, and ARC coverage. Employ curing processes to ensure the rubber reaches its optimal elasticity, durability, and heat resistance.
Manufacture or procure flanges based on pre-determined specifications. Securely attach the flanges to the molded Rubber Bellow, often using bonding agents or vulcanization techniques, to create a solid, reliable connection between rubber and flange.
# How It’s Made : Single arc Rubber Bellows are made from durable, flexible rubber materials like neoprene, EPDM, or nitrile. The manufacturing process typically involves molding or extrusion to form a single arc or bulge in the Bellow’s structure, giving it its unique shape. The rubber material is selected for its resilience against various environmental factors, such as heat, chemicals, or weather exposure.

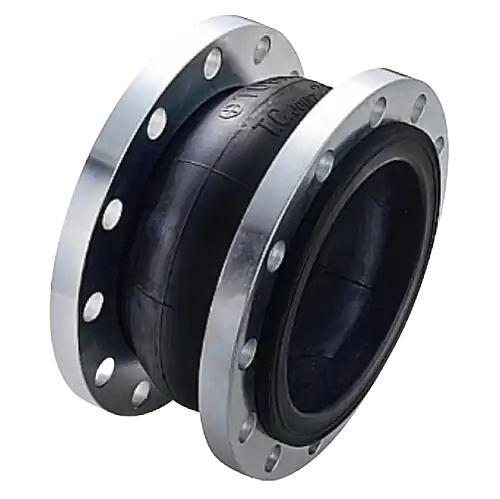

# How its Arc looks : This type of Bellow has a single, smooth arc in its design, creating a single bulging section that allows for limited movement. The single arc design is relatively compact and ideal for applications needing minimal flex.
# Where used : Single arc Bellows are commonly used in applications with limited movement and where a compact, simple design is sufficient. Examples include HVAC systems, automotive applications, and small machinery where they protect sensitive parts from dust, dirt, and moisture.
# Benefits : Compact and space-saving, Simple design with fewer points of stress, Good for low-movement applications and Provides basic protection from environmental factors.

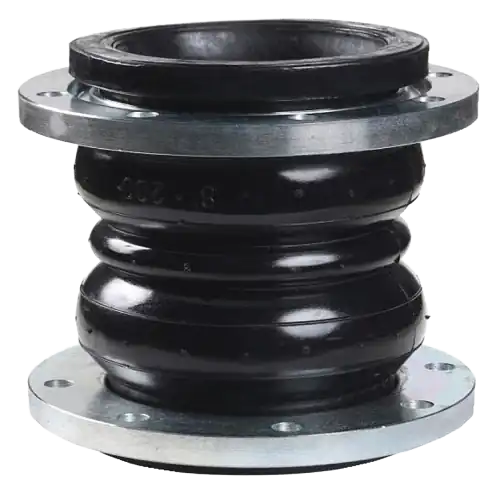

# How it’s made : Double arc Rubber Bellows are produced similarly to single arc Bellows but feature two arcs or bulges in the design. This involves additional molding to form the dual bulges, allowing the Bellow to handle more significant movements and providing better flexibility. Rubber material selection can vary based on the intended application, often emphasizing durability and flexibility.

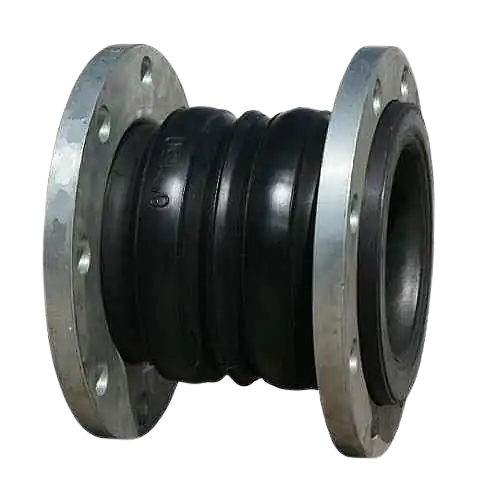

# How its Arc looks : The double arc Rubber Bellow has two distinct bulging arcs, which provide enhanced flexibility and allow for a greater range of movement. The twin arcs create a structure that can expand and contract more than the single arc type.
# Where used : Double arc Bellows are ideal for applications requiring a higher degree of movement and flexibility. They are used in industries like automotive, aerospace, and heavy machinery, where they absorb vibrations, protect components, and accommodate movements in multiple directions.
# Benefits : Enhanced flexibility for applications with greater movement, Better vibration absorption, Suitable for high-movement applications, Improved durability for heavy-duty use.
Rubber Bellows are flexible connectors widely used in various industries to absorb movement and vibrations and compensate for misalignment. Here’s how they’re applied in the specified sectors :
Rubber Bellows help manage high temperatures and protect machinery from dust, gases, and other emissions, enhancing the life of pipelines and equipment.
Used in material handling systems, Rubber Bellows help control dust and particulate emissions while maintaining flexibility in conveying systems.
Rubber Bellows accommodate expansion and contraction from temperature changes, ensuring a secure, leak-proof seal around boiler components.
These Bellows are used in pipelines to handle the stresses of high temperature and pressure, ensuring efficient flow and operational stability.
Rubber Bellows provide flexibility and chemical resistance in piping systems, which are essential to handling various chemicals and extreme conditions in refineries.
In HVAC, Rubber Bellows help absorb noise and vibration, improving system stability and protecting equipment from mechanical stress.
They are integral in pollution control equipment, allowing for controlled and safe movement of gases and particulates through filters and other ecological systems.
Rubber Bellows accommodate thermal expansion in chimney liners, ensuring gas-tight sealing to prevent leaks and enhance safety.
Rubber Bellows provide flexibility in water pipelines, absorbing vibrations and handling pipe movements due to pressure changes.
Used in refineries, Rubber Bellows absorb mechanical stresses and accommodate misalignment in the piping, ensuring efficient and safe operations.
Rubber Bellows in fertilizer plants handle corrosive materials and high-pressure environments, enhancing the durability and safety of equipment.
